Benefits Very long life according to EUROBAT Classification More than 3000 cycles at 70% DOD Special negative active material formula, improve the charge acceptance ability, reduce the negative plate sulphation, more suitable for the partial state of charge (PSOC) application Modular design and horizontal installation, compact structure, saving the installation area and space, easy installation, convenient maintenance Applications Household energy storage system Solar and wind energy system Emergency system Other cycling systems Standards IEC 60896-21/22 IEC61427 EUROBAT guide Specifications: Battery Model DCS12-100 Nominal Voltage 12V Number of cell 6 Design Life 8 years Nominal Capacity @ 25°C 10 Hour rate (10.0A, 10.8V) 100Ah 5 Hour (17.0A, 1.80V) 85.0Ah 3 Hour (25A, 1.80V) 75Ah 100 Hour (1.254A, 1.80V) 125.4Ah Fully Charged Battery @25°C ≤4.1mOhms Self-Discharge (25°C) <1% of capacity declined per month at 25°C (average) Charge Voltage (V/cell, 25℃) Cycle use 2.40 (-3.5mV/℃/cell), max charge current: 40A Float use 2.25 (-3.5mV/℃/cell) Dimensions and Weight L x W x H (mm) 345 x 172 x 275 Approx. Weight (kg) 45

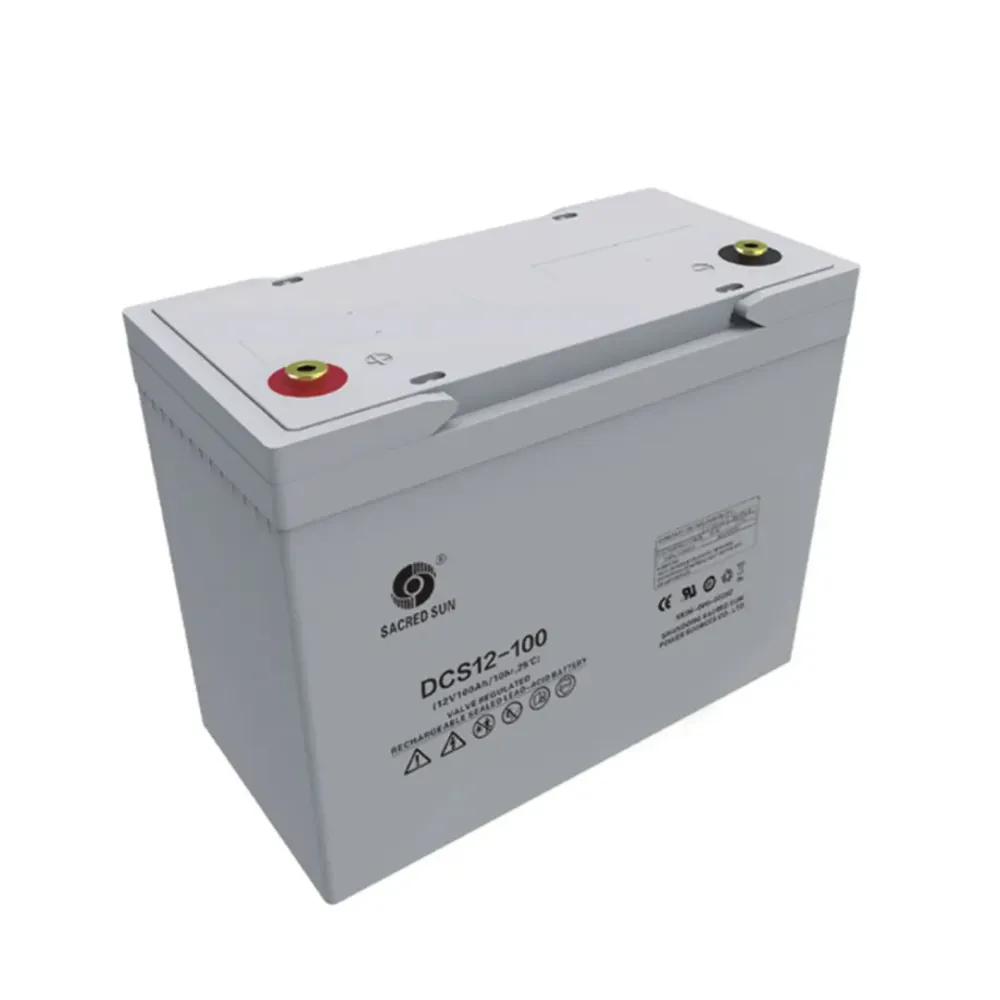

DCS 12-100 12V100Ah Battery
