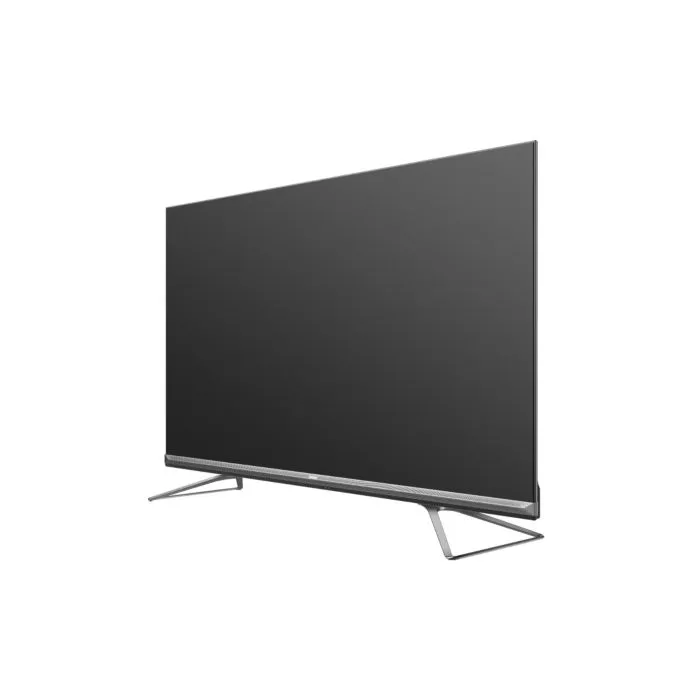

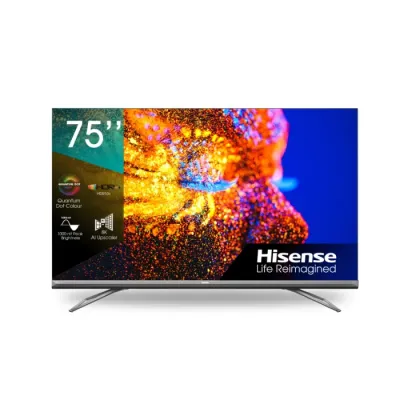

Hisense 190cm (75″) ULED 8K Smart TV



8K Resolution
Enter a new world of picture quality that brings reality
to your living room. Feel the power of every frame with
33 million pixels – 4 times the resolution of 4K. Get closer
to the images with enhanced colors, texture, and skin
tones, making every seat the best in the house.

Quantum Dot Colour
Over a billion shades of vivid colour, with precision. Expressing
the ture-life vivid world.

Full Array Local Dimming Pro
Precisely managing each dimming zones to present
blacks and astonishing highlights, from edge to edge

Peak Brightness
Display the dazzling images with exceptional HDR effect
even in a perfectly bright room.

Dolby Vision
Refined, lifelike image that will make you forget you are
looking at a screen.

Android TV
All the content you love, excatly how you want it. Welcome
to a smarter way to watch TV

Game Mode Pro
Game Mode Pro with ALLM and continual VRR minimizes
input lag, screen jitter, and tearing, keeps you ahead to
win more.

Ultra Motion
Remarkably bright, clear and fluid moving objects are
displayed on this dazzling screen with native 120Hz refresh
rate.

Dolby Atmos
Breakthrough immersive audio experience to your home
whether it is shows, games or live sports

Anti-Glare Screen
The low-reflection screen reduces distracting reflections
from sunlight and other sources of glare on your screen.
The screen absorbs 98.5% of incoming light and only reflects
1.5% back, meaning 66.67% less glare than conventional
TV screens

Full Connectivity
Expand your TV possibilities with HDMI ports, USB slots,
WIFI and Bluetooth

Image display
Panel manufacturer
Hisense

Active display area, horizontal dimension
mm
1650,24

Active display area, vertical dimension
mm
928,26

Screen size (rounded to nearest integer)
cm
189

Screen size (rounded to nearest integer)
inch
75

Display technology

LCD/ LED lit

Backlight source

Full array LED

Resolution (Horiz x Vert)
pixel
7680 x 4320

Screen curvature radius
mm
–

Colour depth
bit
8bit+FRC

Image refresh frequency
Hz
120

Smooth motion rate

240

3D image

–

Maximum brightness of white
cd/m2
450

Native contrast ratio

3800 : 1

Viewing Angle (Horiz / Vert)
Degrees
178/ 178

Quantum dot

YES

Wide colour gamut

Yes

KSF phosphor

No

UHD Premium

No

Response Time
ms
6

Connectivity
RF- Radio frequency input

1

AV input

1

AV output

0

USB interface type 3.0 (Qty / List….)

0

USB interface type 2.0 (Qty / List ….)

2 / USB 1, USB2

Optical digital audio output (SPDIF)

1

Earphone jack

1

HDMI ports
HDMI inputs

4

HDMI type 4K@60Hz with HDCP version 2.2

HDMI 1, HDMI 2,HDMI3,HDMI4

HDMI type 1.4 with HDCP version 1.4

NA

HDMI 2.1 compliant input

HDMI 1, HDMI 2,

ARC -Audio Return Channel

HDMI 3

MHL – Mobile High Definition Link input

NA

CEC- Consumer Electronics Control via HDMI

Yes

Smart TV
Ethernet port (RJ45 connector)

1

Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..}

a, b, g, n, ac

Wi-Fi bands
GHz
2.4 / 5

DLNA compliance

Yes

Bluetooth / BT version

Yes / 5.0

Anyview (Screen mirroring)

Yes

SVOD services {List …….}

1，2，3(PAI)，4

Catch-up TV (Iview / SBS on Demand / Plus 7 / 9 Jumpin / Tenplay)

No / Yes / No / No / No

UHD (4k) streaming

Yes

Installed Applications {List ……}

PAI：SBS ON DEMAND/Game Center/7plus/kayo/Disney+

Installed Applications {List ……}

PAI：Twitch/Binge/ABC iView

Skype

No

Freeview Plus – HbbTV 2.0

Yes

Web browser [Chrome | Opera | Other]

Odin

Digital TV reception
Television system (DVB-T / DVB-T2)

Yes / Yes

Video decoder (MPEG2 / MPEG 4)

Yes / Yes

AC3 Surround sound decoder

Yes

AS 4599.1 compliance

Yes

AS 4933.1 compliance

Yes

LCN- Logical channel number and DTV Service name support

Yes

Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX

Yes / Yes / 4:3

Subtitles

Yes

RF Signal strength indicator

Yes

RF Signal quality indicator

NO

RF Bit error rate indicator

Yes

EPG- Electronic programming guide, 7 days for all services

Yes

Audio description (vision impairment aid)

Yes

Parental rating lock

Yes

Analogue TV reception
Colour-Sound systems in VHF band

PAL B

Colour-Sound systems in UHF band

PAL B

Stereo sound decoder {A2, Nicam, ….}

A2, NICAM

Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX

Yes/ Yes/ Yes

Subtitles

Yes

Image processing
Backlight control

Yes

Light sensing

No

Dynamic backlight control

Yes

Frame rate control

No

Variable Refresh Rate (VRR)

No

FreeSync

No

Auto Low Latency Mode for VRR

No

Local dimming/ controllable zones

Yes / 180

Zoom function settings ( 4:3 / 16:9 / Auto / Zoom 1 / Zoom 2)

Automatic/16:9/4:3/Panoramic/Movie Zoom/Direct

1:1 Pixel mapping

Yes

HDR – High Dynamic Range for luminance (DMP / Netflix / HDMI)

Yes / Yes / Yes

HDR system (HDR10 / Dolby Vision)

Yes /Ye’s

HLG (Hybrid Log-Gamma) for HDR

Yes

HEVC (H.265) decoder

Yes

Dual image (PIP / POP)

No / No

Motion enhancement and compensation (MEMC)

YES

Sound
Audio power output per channel
Watt
15

Number of speakers (Tweeter / Midrange / Woofer)

0 / 2 / 0

Automatic volume level (AVL)

Yes

Audio equalizer

Yes

Dolby Digital

Yes

Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}

Dolby Atmos

Lip-sync adjustment

Yes

Features
On/off timer

Yes

Power off if no signal

Yes

Sleep timer

Yes

Program lock

Yes

OSD transparency control

No

User interface

Android

Software version OSD indication

Yes

Legal requirements: Disclaimer / Acceptance of Terms

Yes / Yes

Favourite channels list

Yes

Electronic point of sales (E-POS)

Yes（Built-in demo vedio）

OTA- Over the air software updates

Yes

Voice command

Google Assistant

Screen mirroring {Miracast, Anyview Cast, …}

Google Cast

Smartphone remote control application {Rremote Now, …}

Yes

Replaceable demo video for Store mode

Yes

Remote control via serial port

No

USB media player
Personal Video Recorder

Yes

Time Shift

Yes

DTV Recording (EPG scheduling / start from Standby )

Yes / Yes

DivX decoder

No

MPEG4 (H.264) / H.265 decoder

Yes / Yes

DMP- Digital media player content (Music / Video / Photos / Text)

Yes / Yes / Yes / No

DMP Auto-play

Yes

DMP for UHD content via USB

Yes

DMP File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes

PVR File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes

Hotel lock
Protected Hotel lock submenu (Password / fixed code)

No / No

Clone function for programs, sound and image settings.

No

Sub-menu lock, including tuning lock

No

Keyboard lock

No

Maximum volume lock

No

Power on volume

No

Power on, apply default sound/image settings

No

Power on source selection

No

Power on RF channel selection

No

Power on mode (On / Standby / Last)

No / No / No

Inputs access (Enable / Disable)

No

Hardware
Processor / Cores

MT9980BAAQIC / 4

Dual Tuner

No

Colour (Front bezel, rear, stand)

Tarnish / Black / Tarnish

Speakers mounted in enclosure

Yes

Mains power switch

No

Swivel base

No

Compact packaging

Yes

Supply range [Voltage / Frequency ]
Volt / Hz
100 ~ 240V / 50, 60Hz

Standby consumption
Watt
< 0.5W

Maximum time delay Power On to sound an image
sec

Installation
Stand area (Width / Depth)
mm
1420 x 424

Wall mount dimensions (Horiz x Vert)
mm
600/400

Wall mount, screw thread
mm
M8/24

VESA compliance

Yes

Detachable power cord

Yes

Power cord length
cm
200

Accessories
Remote controller (Technology / Part number )

BT / ERF6I64H

Battery (size / quantity)

AAA / 2

User manual (Available online) / Quick setup guide (Print)

1 / 1

Warranty [In User manual | In separate sheet]

In separate sheet

Skype camera (Qty / Part number)

–

3D glasses type [Passive | Shutter] / Link [RF | IR | BT]

–

3D glasses (Qty / Part number)

–

Dimensions
Dimensions with stand (W x H x D)
mm
1676×1088×424

Dimensions without stand (W x H x D)
mm
1676×990×76

Carton box dimensions (W x H x D)
mm
1870×1199×225

Net weight (with stand / without stand)
kg
38.2 kg /37.0 kg

Gross weight
kg
53.0 kg

Container load (20ft / 40ft / 40ft HC)

31/63/126

Licensing and certification
EMC- Electromagnetic Compatibility

Yes

CB- Electrical safety

Yes

HDMI

Yes(Hisense internal test)

Dolby Digital

Yes

MEPS- Test report

Yes

ROHS

No

Electrical safety conformity for Australia

Yes

Documentation
Panel specifications

Yes

Initial specifications (input form)

Yes

Confirmed product specifications

Yes

List of DMP formats for audio and video

Yes (QSG)

(Required before purchase order)

Documentation
CB report and certificate

Yes

EMC report and certificate

Yes

Power cord, plug and connector Australian safety approval

Yes

(Required before mass production)
