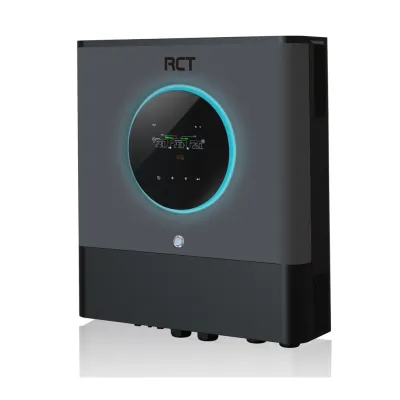

RCT AXPERT MX2 11KVA/11KW INVERTER 48V 2x5500W

11KW INVERTER 48V 2x5500W

– Status indication with RGB lights.
– Built-in wi-fi for mobile monitoring (Android / iOS App is available).
– Supports USB On-the-Go function.
– Reserved communication port for BMS (RS485, CAN-BUS or RS232).
– Replaceable fan design for ease of maintenance.
– Battery-independent design.
– Configurable AC / PV output usage timer and prioritization.
– Selectable high-power charging current.
– Selectable input voltage range for home appliances and personal computers.
– Compatible to utility mains or generator input.
– Built-in anti-dust kit.
– Built-in DC output for DC fan, LED bulb, router and so on.
– Parallel operation with 6 units.

BATTERY VOLTAGE: 48 VDC

FLOATING CHARGE VOLTAGE: 54 VDC

OVERCHARGE PROTECTION: 63 VDC

SOLAR CHARGER & AC CHARGER

MAXIMUM PV ARRAY POWER: 11000 W (5500 W x 2)

MPPT RANGE @ OPERATING VOLTAGE: 90~450 VDC
MAXIMUM PV ARRAY OPEN CIRCUIT VOLTAGE: 500 VDC

MAXIMUM SOLAR CHARGE CURRENT: 150A

MAXIMUM AC CHARGE CURRENT: 150A

MAXIMUM CHARGE CURRENT: 150A

COMMUNICATION INTERFACE: USB / RS232 / RS485 / Wi-Fi / Dry-contact

OPERATING ENVIRONMENT: Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: -10 ˚C to 50 ˚C
Storage Temperature: -15 ˚C to 60 ˚C
STANDARD:
Compliance Safety: CE
